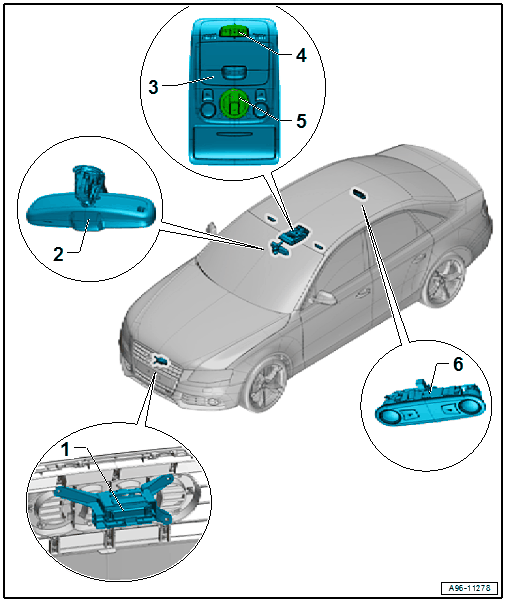

Overview - Roof Trim Panel Controls
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes on contact corrosion. Refer to CONTACT CORROSION .
- Garage Door Opener Control Module -J530-
- Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
- Humidity Sensor -G355-
- Overview. Refer to OVERVIEW - HIGH BEAM ASSIST, HUMIDITY SENSOR AND LANE ASSIST .
- Front Interior Lamp/Reading Lamp
- Front Interior Lamp -W1-
- Front Passenger Reading Lamp -W13-
- Driver Reading Lamp -W19-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

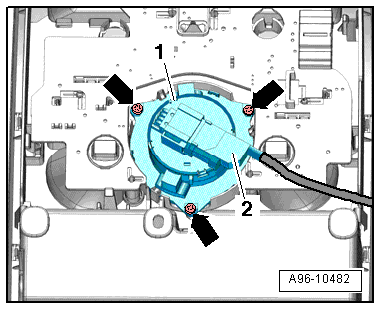

- Garage Door Opener Control Head -E284-
- Removing and installing. Refer to Garage Door Opener Control Head -E284-, REMOVING AND INSTALLING .
- Sunroof Adjustment Regulator -E139-
- Removing and installing. Refer to Sunroof Adjustment Regulator -E139-, REMOVING AND INSTALLING .
- Interior Lamp/Rear Reading Lamp
- Left Rear Interior Lamp -W47-
- Right Rear Interior Lamp -W48-
- Rear interior lamps, removing and installing. Refer to REAR INTERIOR LAMP, REMOVING AND INSTALLING .
- Rear interior/reading lamps, removing and installing. Refer to REAR INTERIOR/READING LAMP, REMOVING AND INSTALLING .
- Screw - 1.6 Nm
- Eyeglass compartment

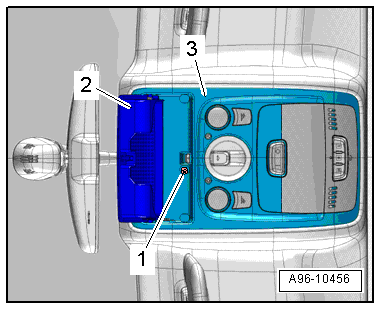

- Front interior lamp/reading lamp
-- Tighten the screws -arrows- to 1 Nm.
