Carpet, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front seat:

Standard seat and Sport seat (manual). Refer to FRONT SEAT, REMOVING AND INSTALLING, MANUAL .
Standard and Sport Power Seat, Comfort Seat and Super Sport Seat. Refer to FRONT SEAT, REMOVING AND INSTALLING, POWER .
Bucket seat. Refer to FRONT SEAT, REMOVING AND INSTALLING, RS BUCKET SEAT .

-- Remove the bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Remove the center console bracket and lower the shift mechanism. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .

-- Remove the rear center console vent on the center tunnel. Refer to Air Conditioning .

-- Remove the front sill panel strip. Refer to SILL PANEL STRIP, REMOVING AND INSTALLING, FRONT SILL PANEL .

-- Remove the rear sill panel strip. Refer to SILL PANEL, REMOVING AND INSTALLING, REAR SILL PANEL .

-- Remove the B-pillar lower trim piece. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING, LOWER B-PILLAR TRIM PANEL .

-- Disengage the floor covering at brackets -1- and -2-.

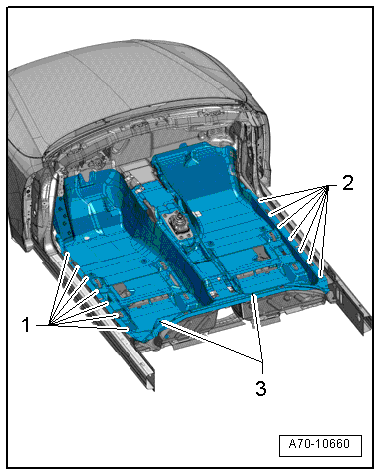

Fig 1: Disengaging Floor Covering At Brackets -1- And -2

Courtesy of AUDI OF AMERICA, LLC

-- Pull the floor covering -3- back.

NOTE:

Make sure the floor covering does not tear at the openings.

-- Fold the floor covering lengthwise and remove it through a door.
