General overview

WARNING: This page is about a different car, the 2002 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

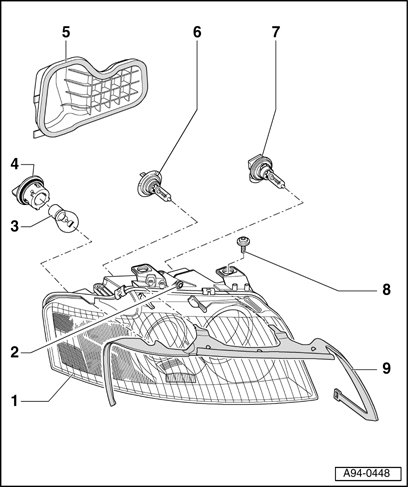

Fig 1: Headlight Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: Headlights must be readjusted after performing measures which could affect their setting.

1 - Headlight housing

2 - Impact screw

For adjusting headlight housing to body contour
Must make contact at lock carrier

3 - Light bulb for turn signal/parking light

12 V, 27/7 W
Orange
Replacing bulb. Refer to Light bulb for turn signal/parking light, replacing

Fig 2: Headlight Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

4 - Light bulb socket

5 - Housing cover

6 - Bulb for low beam

H1 - 12 V, 55 W
Replacing. Refer to Light bulb for low beam, replacing

7 - Bulb for high beam

H9 - 12 V, 65 W
Replacing. Refer to Light bulb for high beam, replacing

8 - 6 Nm

9 - Gap cover
