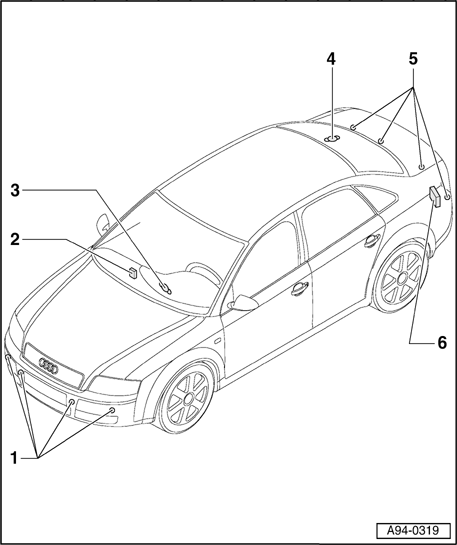

Parking aid system, component overview
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Front sensors not applicable to USA/Canada
2 - Not applicable to USA/Canada
3 - Not applicable to USA/Canada
4 - Rear Parking Aid Warning Buzzer H15
Sedan:
- Under rear parcel shelf
- Removing and installing → Rear Parking Aid Warning Buzzer H15 - Sedan, removing and installing
Avant:
- In luggage compartment rear left under side trim
- Removing and installing → Rear Parking Aid Warning Buzzer H15 - Avant, removing and installing
5 - Rear Parking Aid Sensors
- In rear bumper
- Removing and installing → Rear parking aid sensors, removing and installing
6 - Parking Aid Control Module J446
- in left rear luggage compartment under side trim
- Removing and installing → Parking Aid Control Module J446 , removing and installing
