Side airbag guide, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

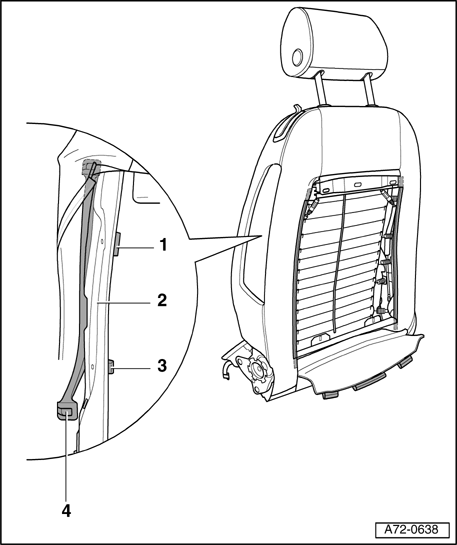

Fig 1: Side Airbag Guide Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Mount

2 - Backrest frame

3 - Clip

4 - Side airbag guide

Removing

Remove seat → Seat, assembly overview .
Remove backrest cover panel → Backrest cover panel, removing and installing .
Remove side airbag → Side airbag (sports seat, standard seat), removing and installing .
Press clip -3- together from inside of backrest frame - 2 -.

Pry out mount -1- from inside.
Remove side airbag guide -4-.

Installing

Install in reverse order of removal.
