Seat height adjuster unit, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, workshop equipment, testers, measuring instruments and other items required
Torque wrench V.A.G 1410

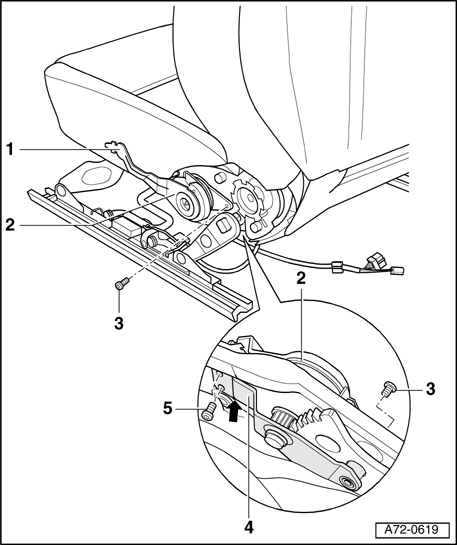

1 - Seat height adjuster lever
2 - Seat height adjuster unit
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Remove backrest adjuster → Backrest adjuster, removing and installing .
- Remove seat height adjuster → Seat height adjuster, removing and installing .
- Remove side trim on sill panel side → Side trim on sill panel side, removing and installing .
- Remove bolt - 3 -.
- Remove bolts - 5 - (2x).
- Remove seat height adjuster unit - 2 - and retainer - 4 -.
- Installing
- Install seat height adjuster unit - 2 - in reverse order of removal.
- Make sure retainer - 4 - makes contact with seat pan - arrow -.
- Make sure clip is attached to lever of seat height adjuster - 2 -. Observe installation position → Installation position of clip
3 - Bolt
- Tightening torque 8 Nm
4 - Retainer
5 - Bolts (2x)
- Tightening torque 8 Nm
