Backrest adjuster, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Fig 1: Assembly Tool 3399

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Assembly tool 3399
Removing

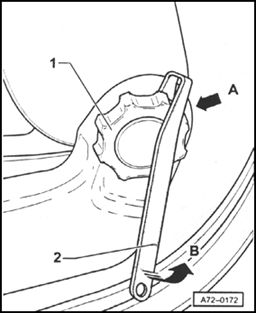

Fig 2: Removing Backrest Adjustment Wheel

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Turn backrest adjuster - 1 - until detent is visible from rear - arrow A -. Use light, if necessary.
Hook in assembly tool 3399 - 2 - and lever in direction of arrow - B -.
Turn backrest adjuster - 1 - an additional 120° turn.
Hook in special tool 3399 - 2 - and lever in direction of arrow - B -.

Detach backrest adjuster - 1 -.

Installing

NOTE:

After installing backrest adjuster, replace if it is too loose.
