Outer frame, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

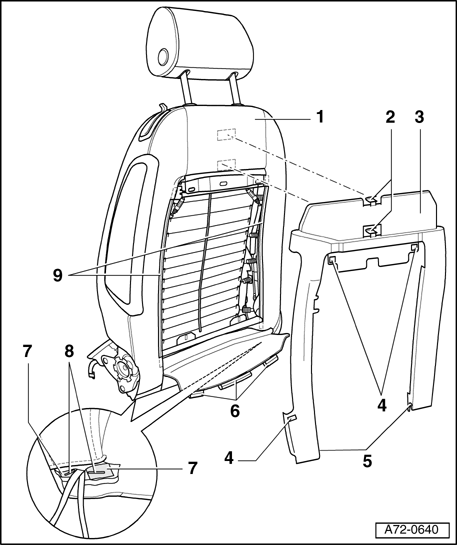

1 - Front seat
2 - Clips (2x)
3 - Outer frame
- Removing
- Remove backrest cover panel → Backrest cover panel, removing and installing .
- Pry out staples - 8 - (4x) on left and right.
- Remove velcro strips - 7 - (4x) on left and right.
- Disengage piping on side - 9 - (2x).
- Pry out piping at bottom - 6 - (3x).
- Pry out clips - 4 - (3x).
- Pry out clips - 2 - (2x).
- Remove outer frame - 3 - from backrest frame.
- Installing
- Lock outer frame - 3 - at holders - 5 - (2x) in backrest frame.
- Install outer frame - 3 - in reverse order of removal.
4 - Clips (3x)
5 - Holders (2x)
6 - Bottom piping (3x)
7 - Velcro strips (4x)
8 - Staples (4x)
- Commercially available.
- Only use upholstery stapler.
9 - Side piping (2x)
