Microswitch for seatback release, adjusting

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For vehicles up to 05.02, VIN: 8H 3K 002 450: To prevent malfunctions of headrest and seatback adjustment, apply a cable tie - 1 -.

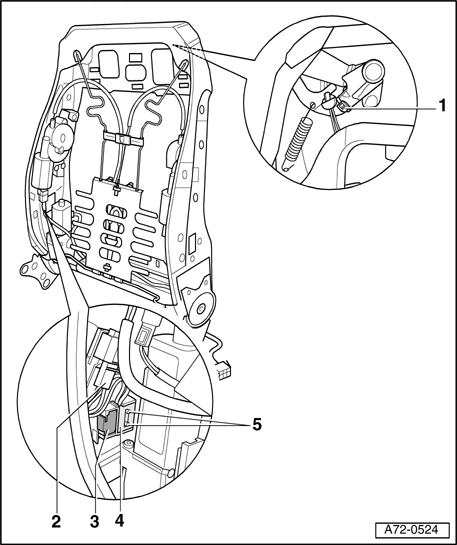

Fig 1: Microswitch For Seatback Release, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cable tie

2 - Connector

3 - Circlip

4 - Microswitch for seatback release

Adjusting and checking function

Remove backrest panel → Backrest cover panel, removing and installing .
Use a screwdriver to pry out circlip - 3 -.
Slide microswitch - 4 - only far enough so that backrest is switched off when release lever is lifted 1/3.
Check backrest function at adjustment switch:

Backrest is not activated when backrest release lever is lifted to 1/3.
Backrest is activated when release lever is in rest position.
Correct the position of microswitch - 4 - as necessary and check its function again.

5 - Catches (2x)
