Microswitch for headrest, adjusting
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- For vehicles up to 05.02, VIN: 8H 3K 002 450: To prevent malfunctions of headrest and seatback adjustment, apply a cable tie - 1 -.

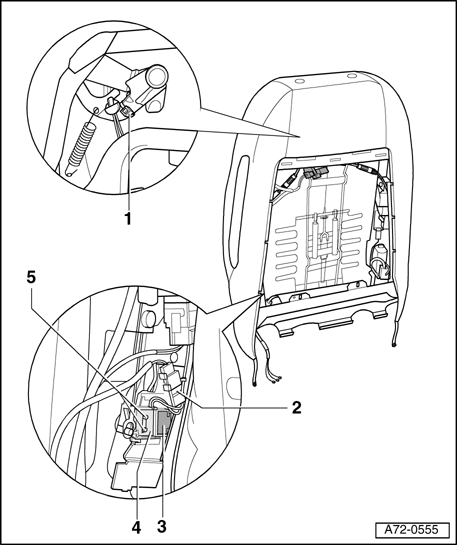

1 - Cable tie
2 - Connector
3 - Circlip
4 - Circlip
- Adjusting and checking function
- Remove backrest panel → Backrest cover panel, removing and installing .
- Use a screwdriver to pry out circlip - 3 -.
- Slide microswitch - 4 - only far enough so that headrest is moved downward and switched off when release lever is lifted 1/3.
- Check function of headrest at adjustment switch:
- Headrest is not activated when backrest release lever is lifted to 1/3.
- Headrest is activated when release lever is in rest position.
- Correct the position of microswitch - 4 - as necessary and check its function again.
5 - Catches (2x)
