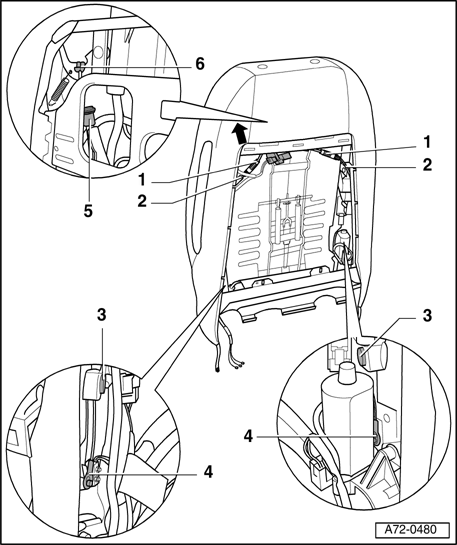

Bowden cable for backrest lock, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- For the sake of illustration, the seat is depicted without seat pan in the illustration.
1 - Adjustment devices for Bowden cable (2x)
2 - Bowden cable for backrest lock (2x)
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Remove backrest panel → Backrest cover panel, removing and installing .
- Operate the Easy Entry handle of entry assistance and fold backrest forward.
- Disengage eyelets - 4 - (2x) at bottom left and right, using pliers.
- Using a screwdriver, pry out left and right retainers - 3 - (2x).
- Remove Bowden cables - 2 - (2x) upward.
- Slide seat cover upward in direction of - arrow -.
- Disengage Bowden cables at brackets - 5 - and - 6 -.
- Installing
NOTE:
- For vehicles up to 05.02, VIN: 8H 3K 002 450: To prevent malfunctions of headrest and seatback adjustment, apply a cable tie - 7 -.
- Install Bowden cable for backrest lock in reverse order of removal.
- Adjust Bowden cables - 1 - (2x) using adjustment devices - 2 - (2x). Ensure that the lower pins at left and right are released simultaneously when the Easy Entry handle of entry assistance is operated.
3 - Retainers (2x)
4 - Eyelets (2x)
5 - Bracket
6 - Bracket
7 - Cable tie
