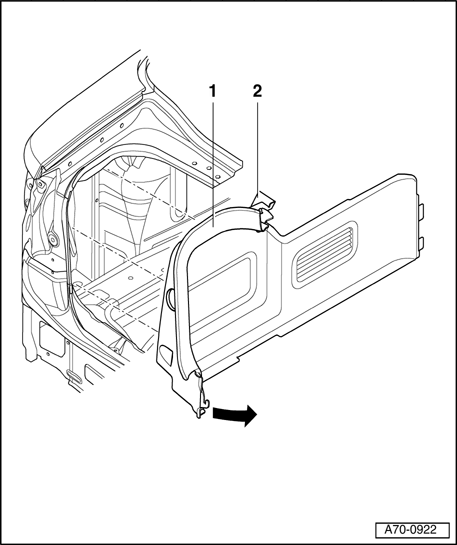

Left side trim, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Left side trim
- Removing
- Remove luggage compartment floor covering.
- Remove rear panel trim → Rear cross panel trim, assembly overview .
- Unclip clip - 2 -.
- Detach left side trim - 1 - in direction of - arrow -.
- Installing
NOTE:
- After installation ensure that seal is pulled correctly over trim.
- Install trim in reverse order of removal.
2 - Clip
