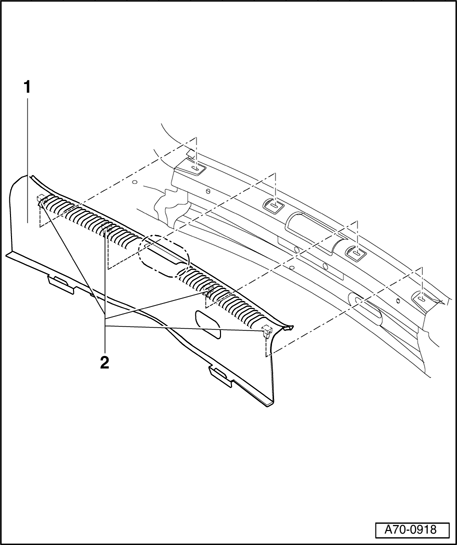

Rear cross panel trim, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Rear cross panel trim
- Removing
- Remove luggage compartment floor covering from luggage compartment
- Remove luggage compartment light → Luggage compartment light, removing and installing .
- Unclip rear cross panel trim - 1 - upward from clips - 2 - (4x).
- Installing
NOTE:
- After installation ensure that seal is pulled correctly over trim.
- Install rear cross panel trim in reverse order of removal.
2 - Clips (4x)
