Back panel trim, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Back panel trim
- Removing
- Remove right side trim → Right side trim, assembly overview .
- Remove left side trim → Left side trim, assembly overview .
- Remove luggage compartment floor covering.
- If installed, remove frame for ski bag → Removing and installing trim for through-load bag .
- Ensure that convertible top is closed and convertible top compartment folded up.
- Unclip back panel trim - 1 - at clips - 2 - (6x).

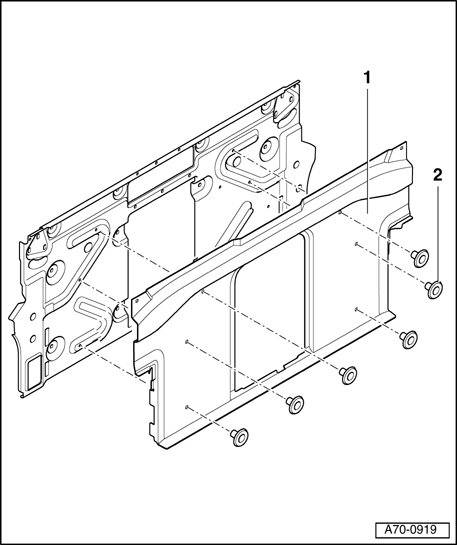

2 - Clips (6x)

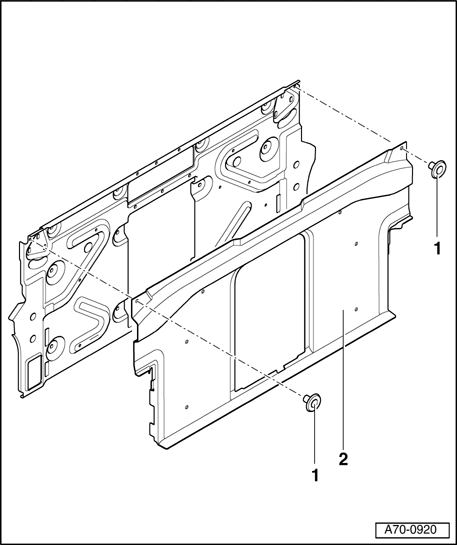

1 - Clips (2x)
2 - Back panel trim
- Fold convertible top compartment down.
- Open convertible top.
- Unclip back panel trim - 2 - at clips - 1 - (2x).
- Lift out back panel trim - 2 -.
- Removing
- Install back panel trim - 2 - in reverse order of removal.
