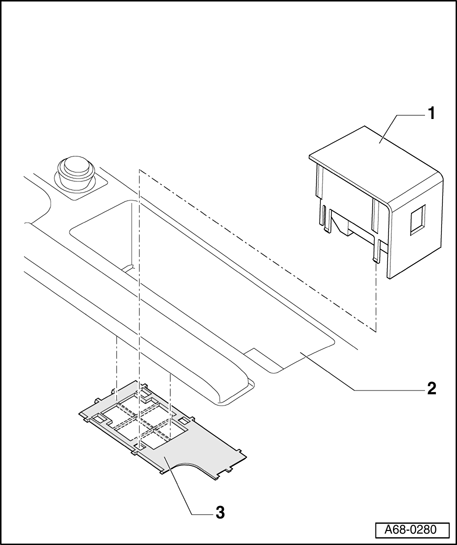

Connector mount, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Connector mount
- Removing
- Remove center console → Center console, assembly overview .
- Turn center console over.
- Pry off catch - 3 -.
- Remove connector mount - 1 - from recess - 2 -.
2 - Recess for connector mount in center console
3 - Connector mount catch
