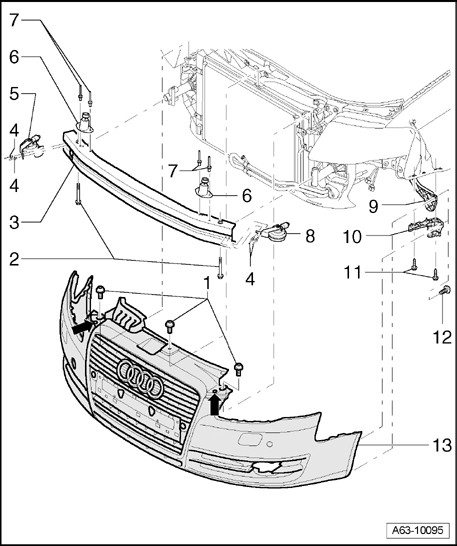

Front bumper (from model year 2006) - assembly overview: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Screw
- 6 Nm
2 - Screw
- 23 Nm
3 - Bumper crossmember
- Bumper cover removed.
- To remove, remove bolts - 2 -.
- Disconnect harness connectors to signal horns and remove bumper crossmember from impact absorbers toward front.
4 - Pop rivet
5 - Signal horn
- To remove, drill off rivet heads.
6 - Support piece
NOTE:
- When turning adjustment screw, make sure mounting bracket raises.
- Before installing bumper cover, adjust support piece adjusting screw Adjusting support piece .
- Tighten adjustment screw to 2 Nm with a long Torx wrench - T30 - through holes in cover - arrows -.
- To disassemble, drill off pop rivet heads.
7 - Pop rivet
8 - Signal horn
9 - Brace for fender
10 - Guide piece
- Side piece of bumper cover must be clipped in between fender and guide piece Removing guide piece .
11 - Screw
- 1 Nm
12 - Screw
- 1 Nm
13 - Bumper cover
NOTE:
- While installing, the following sequence described for assembling/bolting must be observed for correct assembly.
- Set cover onto vehicle and first clip the left and right side piece into guide parts - 10 -.
- Tighten nuts on fender connection Fender bolts .
- Tighten bolts - 12 - to wheelhousing liner.
- Loosely thread in bolts - 1 -.
- Close hood and check cover for projection and recess.
- If necessary, check position of cover and tighten bolts - 12 -.
- Tighten bolt on support piece to 2 Nm Adjusting support piece .
- Bumper cover, removing and installing → Front bumper (from model year 2006), removing and installing .
- Crossmember, removing and installing → Bumper crossmember, removing from cover .
