Front bumper (RS4) - assembly overview: Notes

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal and installation is done the same as the standard bumper from model year 2006.
Only differing steps are described.

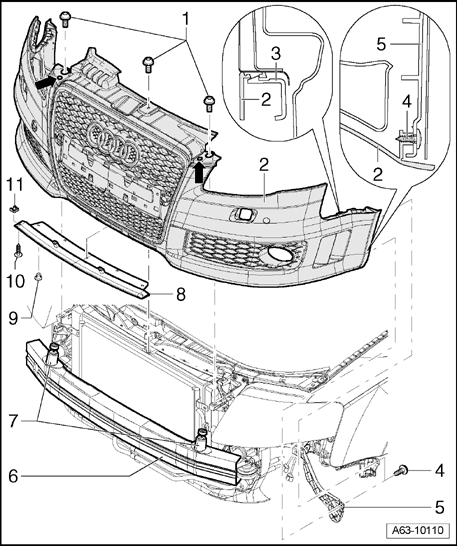

Fig 1: Front Bumper (RS4) - Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Screw

6 Nm

2 - Bumper cover

Removal and installation as with standard production.

NOTE:

While installing, the following sequence described for assembling/bolting must be observed for correct assembly.

Set cover onto vehicle and first clip the left and right side piece into guide parts - 10 -.
Tighten nuts on fender connection Fender bolts .
Tighten bolts - 12 - to wheelhousing liner.
Loosely thread in bolts - 1 -.

Close hood and check cover for projection and recess.
If necessary, check position of cover and tighten bolts - 4 -.
Tighten bolt on support piece to 2 Nm Adjusting support piece .
Bumper cover, removing and installing → Front bumper (from model year 2006), removing and installing .

Crossmember, removing and installing → Bumper crossmember, removing from cover .

3 - Guide piece

4 - Screw

1 Nm

5 - Brace for fender

6 - Bumper crossmember

7 - Support piece

NOTE:

When turning adjustment screw, make sure mounting bracket raises.
Before installing bumper cover, adjust support piece adjusting screw Adjusting support piece .
Tighten adjustment screw to 2 Nm with a long Torx wrench - T30 - through holes in cover - arrows -.
To disassemble, drill off pop rivet heads.

8 - Front spoiler

Remove screws - 10 -.
Slide spoiler back slightly out of bumper cover guides.
Remove spoiler downward.

9 - Expanding rivet

10 - Screw

2 Nm

11 - Spring nut
