Side window, adjusting

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Side Window Installation Tool V.A.G 1739

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Side Window Installation Tool V.A.G 1739

Distinctive features can be:

Low window tension.
Wind noise.
Window rattles with convertible top open.
Window runs poorly into roof frame seal.

Fig 2: Check Window To See If It Is Parallel

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Check window to see if it is parallel

Close convertible top.

Raise all windows.
Close both doors.
Using a steel ruler, measure gap dimension between door window and side window.

Gap must be parallel, dimension - a - and dimension - b - = 9-10 mm.
Deviation from parallel: 0.5 mm.

Fig 3: Side Window Height And Parallelism, Adjusting

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Side window height and parallelism, adjusting

Open convertible top.
Remove side panel trim →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
.
Remove rear seat bench →
- 72 - SEAT - FRAMES
- 72 - SEAT - FRAMES for BODY INTERIOR - CABRIOLET
.
Remove speaker cover and speaker.

Raise all windows.
Loosen nuts - arrows -.
Adjust parallelism or side window height to door window by moving side window.
Tighten nuts.

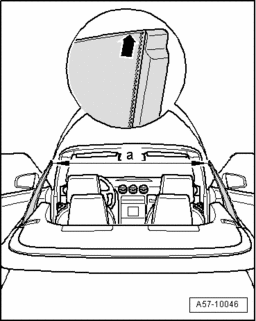

Fig 4: Side Window Distance, Checking

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Side window distance, checking

Open convertible top.
Raise side windows.
Open both doors.
Using a tape measure on inner edge of side windows - arrow - , measure distance of side windows to each other.

Distance - a - = 1169 -1171 mm.

NOTE:

Because this measurement cannot determine symmetry to both windows, the window that is still noticeable after all pre-adjustments is adjusted in case of a deviation from the dimension.

Fig 5: Side Window Distance, Adjusting

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Side window distance, adjusting

Remove side panel trim →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
.
Remove rear seat bench →
- 72 - SEAT - FRAMES
- 72 - SEAT - FRAMES for BODY INTERIOR - CABRIOLET
.
Remove speaker cover and speaker.
Loosen nut - arrow -.

Adjust window angle with Side Window Installation Tool V.A.G 1739 Angle, adjusting .

Fig 6: Identifying Window Regulator Can Be Adjusted In Respective By Turning Adjusting Screw In/Out

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

The window regulator - 4 - can be adjusted in the respective - direction of arrow - by turning adjusting screw - 2 - in or out.
Turning right: distance is increased.
1 turn corresponds to approx. 2 mm.

Tighten nuts and bolts.

Tightening torques → Side windows - assembly overview .
