Lock cylinder, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

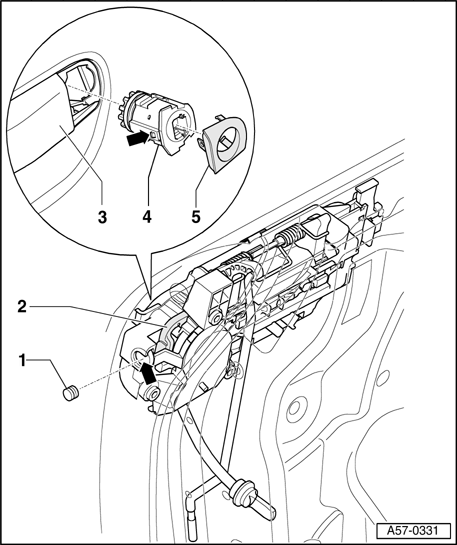

- Open drivers door and pry out cover cap - 1 -.
- Remove bolt - arrow - counter-clockwise as far as stop.
This moves the securing clip - 2 - back and releases lock cylinder.
- Remove lock cylinder - 4 - from door handle.
Installation is reverse of removal.
