Door, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- For various assembly work, the entire door can be completely raise from the door hinges after electrical connectors on lower A-pillar have been disconnected.
- Adjustments must not be made after installation.
- Pull bellows down from A-pillar.
- Disconnect electrical connectors on bottom of A-pillar.

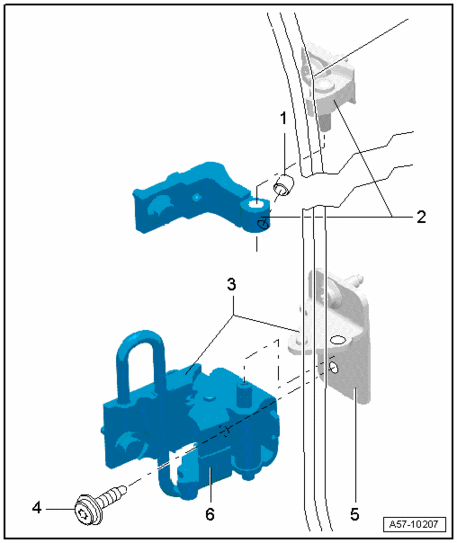

- Loosen bolt - 1 - on upper door hinge - 2 -.
- Remove lower bolt - 4 - on bottom door hinge - 3 -.
- Raise door with a second technician.
Installation is reverse of removal.
Tightening torques → Door hinge - assembly overview .
