Door handle, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Remove door trim →

70 - INTERIOR TRIM
70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET

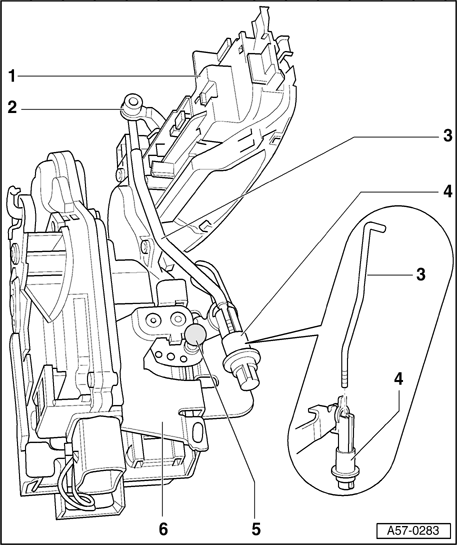

Fig 1: Door Handle Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disengage operating rod - 3 - on clip - 2 -.
Remove lock cylinder → Lock cylinder - assembly overview .

Fig 2: Inserting Screwdriver Through Door Plate And Releasing Slider From Door Handle

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert screwdriver through door plate and release slider - 2 - in - direction of arrow - from door handle - 1 -.
Remove door handle.
