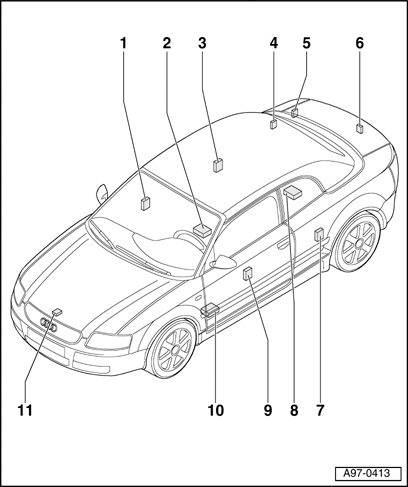

Component locations: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Front Passengers Door Control Module J387
- Installation location → Front Passengers Door Control Module J387 .
2 - Radar Interior Monitoring Control Module 2 G305
- Installation location → Radar Interior Monitoring Control Module 2 G305 .
3 - Right Rear Window Regulator Motor V27
- Installation location → Right Rear Window Regulator Motor V27 .
4 - Alarm Horn H12
- Installation location → Alarm Horn H12 .
5 - Motor for fuel tank lid unlock V155
- Installation location → Motor for fuel tank lid unlock V155 .
6 - Motor for rear lid release V139
- Installation location → Motor for rear lid release V139 .
7 - Left Rear Window Regulator Motor V26
- Installation location → Left Rear Window Regulator Motor V26 .
8 - Radar Interior Monitoring Control Module 1 G303
- Installation location → Radar Interior Monitoring Control Module 1 G303 .
9 - Driver s Door Control Module J386
- Installation location → Drivers Door Control Module J386 .
10 - Central control module for comfort system J393
- Installation location → Central control module for comfort system J393 .
11 - Front hood switch F266
- Installation location → Front hood switch F266 .
