Fuel filler flap, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

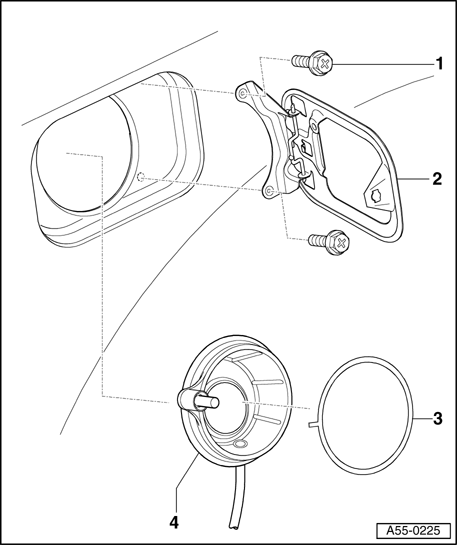

1 - Screw
- 1.5 Nm
2 - Fuel filler flap
3 - Circlip
- Remove before removing filler neck cup.
4 - Filler neck cup
- Removing:
- Remove securing clip.
- Raise cup out of opening slightly.
- Remove drain hose from lower guide piece and completely remove from opening with cup.
- Installing:
- Coat cup with lubricant (e.g. soap solution).
- Slide drain hose into body opening.
- Press cup completely into opening.
- Insert circlip.
- Insert drain hose into lower guide piece Insert filler neck cup drain hose into guide piece. .
- Panel gap dimensions Panel gap dimensions .
