Right fender seal
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- A new seal must always be installed after removal.
- Both seals are installed on the right side only on vehicles with diesel engine.

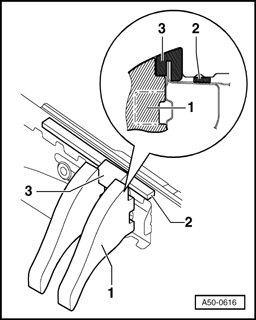

- Remove protective adhesive film from seal - 1 - and insert in fender.
2 - Fender seal
3 - Seal connecting piece (only on vehicles with TDI engine)
