Left fender seal

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

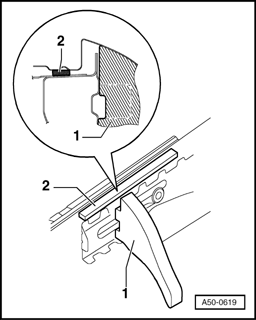

Fig 1: Left Fender Seal
GW00020474Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • A new seal must always be installed after removal.

2 - Fender seal
