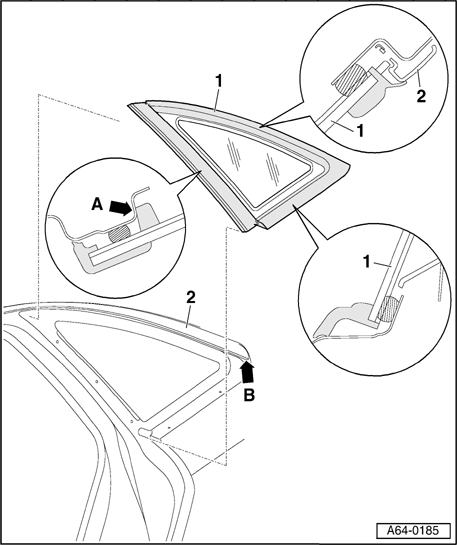

Side window with molding - assembly overview
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Side window
- Removal → Undamaged side window, removing .
- Note varying spacing dimensions of adhesive bead to window edge.
- When inserting window, make sure that retaining tabs on molding at D-pillar, or at joint of D-pillar to side panel, are slide behind roof trim molding.
2 - Roof trim molding
