Undamaged side window, removing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Side window with molding

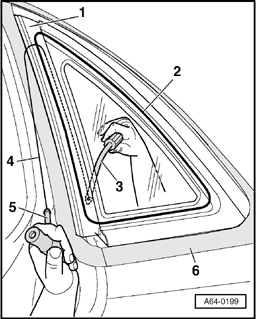

Fig 1: Undamaged Side Window, Removing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Apply fabric reinforced adhesive tape - 6 - to area of window edges along circumference to protect paint from damage.
Using awl from V.A.G 1755, pierce through adhesive bead on window glass - 1 - at top in direction of B-pillar from inside vehicle toward outside.
Pull cutting cord - 4 - through toward inside and secure it in grab handle - 3 -.
Secure the other end in pull handle - 5 -.

Second technician pierces adhesive bead at bottom using grab handle as shown.
Pull cutting cord on the outside through adhesive bead - 2 - downward.

NOTE:

At the corners, move cutting cord in sawing motions to cut through the adhesive more easily.

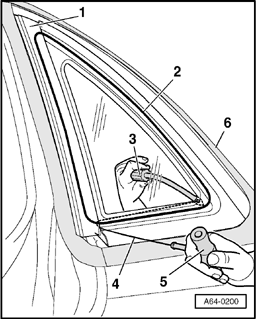

Fig 2: Pulling Cutting Cord Toward Inside And Inserting Grab Handle Into Adhesive Bead At D-Pillar At Rear

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull cutting cord - 4 - toward inside and insert grab handle - 3 - into adhesive bead - 2 - at D-pillar at rear.
Pull cutting cord - 4 - toward rear through adhesive bead using pull handle.

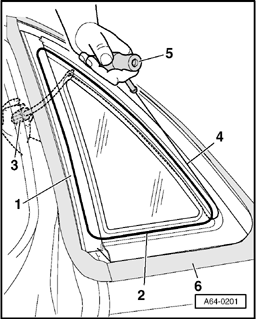

Fig 3: Pulling Cutting Cord Toward Inside And Inserting Grab Handle Into Adhesive Bead At D-Pillar At Top

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull cutting cord - 4 - toward inside and insert grab handle - 3 - into adhesive bead - 2 - at D-pillar at top.
Pull cutting cord - 4 - upward through adhesive bead using pull handle.
Remove window from cut-out.

Side window with gloss package

Remove C-/D-pillar trim →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
.

Fig 4: Removing/Installing Roof Trim Molding And Slide Trim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Apply adhesive tape - 3 - to C-/D-pillar trim as well as side panel to protect paint from damage.
Pull off trim molding - 1 - from retaining clips - 2 - toward front.

CAUTION: Roof trim molding must not be bent.

Fig 5: Removing/Installing Roof Trim Molding

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Carefully pull roof trim molding - 1 - from below, beginning at C-pillar, out of retaining clips using a plastic wedge.
Pry out roof trim molding at D-pillar in the same manner out of retaining clips and pull off downward.
Insert cutting cord around the side window as depicted in the illustration.

Fig 6: Securing Ends X And Y In Two Pull Grips From Special Tool V.A.G 1351

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Secure ends X and Y in two pull grips from special tool V.A.G 1351.
Pull cutting cord in - direction of arrow A - using light sawing motions and cut through lower adhesive sealing material at side panel and at roof frame.
Then pull cutting cord through in - direction of arrow B - downward through adhesive sealing material.
Remove window from window opening.
