Side window with gloss package - assembly overview

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

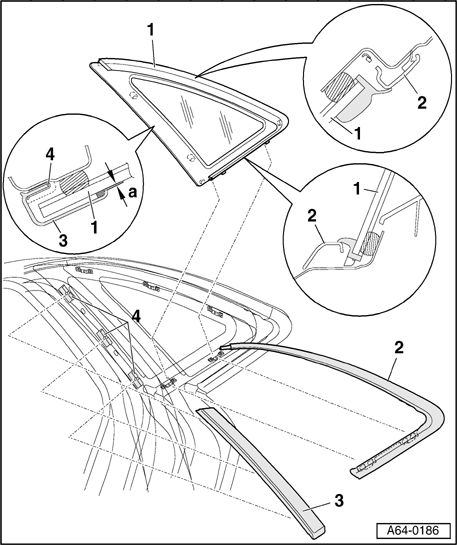

Fig 1: Side Window With Gloss Package - Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Side window

Removal → Undamaged side window, removing .
Note varying spacing dimensions of adhesive bead to window edge.
When installing, set window first on side panel at bottom.
Press in window up to lower stop - arrow - and into window cut-out.

After curing time has elapsed, install roof trim molding and trim to D-pillar

2 - Roof trim molding D-pillar

C-pillar trim removed.
To remove, pry carefully out of retaining clips beginning first at bottom on C-pillar.
Then pry out of retaining clips at D-pillar and pull downward out of roof trim molding.

3 - C- pillar trim

To remove, pull trim panel out of clips - 4 - toward rear.
When installing, insert trim panel first at top on roof trim molding and press completely into clips - 4 -.
Dimension - a - = 0.5 ± 0.1 mm

4 - Retaining clips

Riveted to C- pillar.
