Shield, removing and installing

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

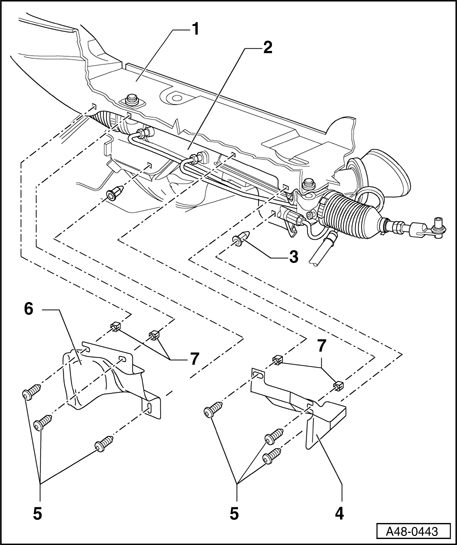

Fig 1: Shield Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Plenum chamber

2 - Power-assist steering gear

3 - Spreader nut

4 - Shield

With 6 and 8-cylinder gasoline engines, remove front exhaust pipe →
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 1.8 LITER 4-CYL. 5V TURBO ENGINE MECHANICAL, ENGINE CODE(S): AMB
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 2.0 LITER 4-CYL. 4V TURBO ENGINE MECHANICAL, ENGINE CODE(S): BPG, BWT
- 26 EXHAUST SYSTEM, EMISSION CONTROLS for 3.0 LITER 6-CYL. 5V ENGINE MECHANICAL, ENGINE CODE(S): AVK, BGN
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 3.2 V6 4V ENGINE MECHANICAL, ENGINE CODE(S): BKH
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 4.2 LITER V8 4V ENGINE MECHANICAL, ENGINE CODE(S): BNS
- 26 - EXHAUST SYSTEM, EMISSION CONTROLS for 4.2 LITER V8 5V ENGINE MECHANICAL, ENGINE CODE(S): BHF

5 - Sheet metal screw, 2 Nm

6 - Shield

For all vehicles

7 - Spreader nut
