Part I oil pan, balance shaft module, component overview

WARNING: This page is about a different car, the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Part II Balance shaft module, oil pump → Part II balance shaft assembly with oil pump, component overview

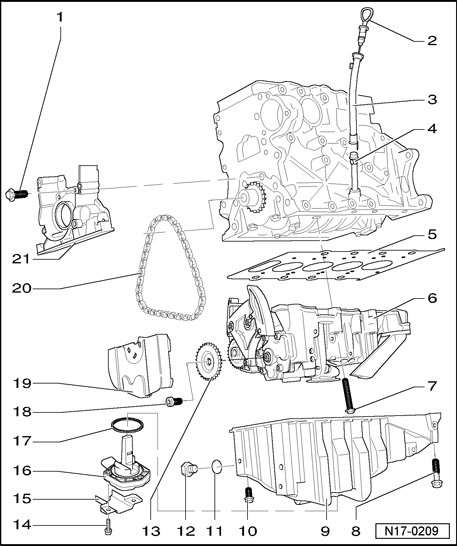

Fig 1: Part I Oil Pan, Balance Shaft Module, Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - 15 Nm

2 - Oil dipstick

Oil level must not be above max. mark!

3 - Inlet spout

4 - Guide tube

5 - Intermediate plate

6 - Balance shaft module with oil pump

With pressure relief valve 12 bar
Removing and installing → Balance shaft module with oil pump, removing and installing

7 - 15 Nm plus an additional ¹ /₄ turn (90 °)

Replace
Note different length of bolts Bolt allocation for balance shaft housing

8 - 15 Nm

9 - Oil pan

Clean sealing surface before installing
Removing and installing → Oil pan, removing and installing

10 - 15 Nm

11 - Seal

12 - Oil drain plug, 30 Nm

With permanent sealing ring
Replace

13 - Chain sprocket

14 - 10 Nm

15 - Protective cap

16 - Oil Level Thermal Sensor G266

17 - Seal

Replace
Oil before assembling

18 - 20 Nm plus an additional 90 °

Replace

19 - Chain guard

20 - Chain

21 - Sealing flange

Must be located on dowel sleeves
Seal for crankshaft - belt pulley side, replacing → Crankshaft seal - ribbed belt side, replacing
