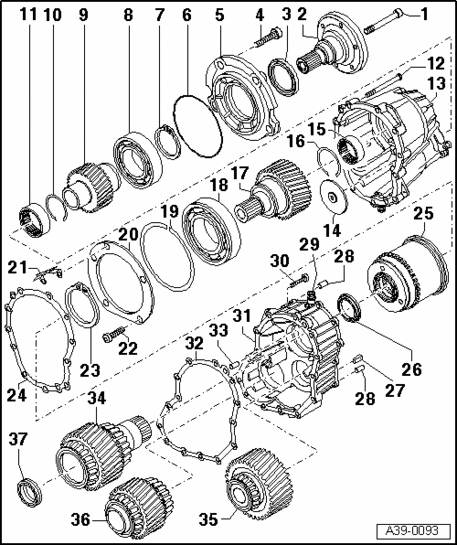

Front final drive and transfer case, component overview: Notes
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Components shown in illustration can be removed with transmission installed.
1 - Internal hex bolt, 25 Nm
2 - Driveshaft output flange
3 - Shaft seal
- Replace → 39 - FINAL DRIVE, DIFFERENTIAL
4 - Bolt, 23 Nm
- Qty. 4
5 - Housing cover
6 - O-ring
- Coat with axle oil
7 - Circlip
8 - Grooved ball bearing
- For spur gear 1
- Pressing off Pressing off grooved ball bearing for spur gear 1
- Pressing on Pressing on grooved ball bearing for spur gear 1
9 - Spur gear 1
- For rear ring and pinion set
10 - Circlip
11 - Needle bearing
- For spur gear 1
- Remove only to replace
- To replace transfer case housing, warm to approx. 100° C and drive needle bearing with drift towards rear (Attention! Wear protective gloves)
- Drive in with Sleeve 30-21 to stop
12 - Bolt, 23 Nm
- Loosen or tighten diagonally
13 - Transfer case housing
- Can be replaced if damaged
14 - Clamping nut
15 - Needle bearing
- Remove only to replace
- Replace → Needle bearing for spur gear 2, replacing
16 - Circlip
17 - Spur gear 2
- For rear ring and pinion set
18 - Grooved ball bearing
- For spur gear 2
- Pressing off Pressing off grooved ball bearing for spur gear 2
- Pressing on Pressing on grooved ball bearing for spur gear 2
19 - Circlip
20 - Fastening plate
21 - Guide plate
22 - Bolt, 8 Nm
23 - Circlip
24 - Gasket
- Replace → 39 - FINAL DRIVE, DIFFERENTIAL
25 - Torsen differential
- Replace complete unit if damaged
- Removing and installing → 39 - FINAL DRIVE, DIFFERENTIAL
26 - Shaft seal
27 - Magnet
- Replacing → 39 - FINAL DRIVE, DIFFERENTIAL
28 - Alignment bushing
- Qty. 2
29 - Bleeder
- For transfer case
- With attached cover
- Installation position: Without cover, breather must project 10 to 11 mm out of housing
30 - Bolt, 23 Nm
- Loosen and tighten diagonally
31 - Intermediate flange for front final drive
- Removing and installing → 39 - FINAL DRIVE, DIFFERENTIAL
32 - Gasket
- Replace → 39 - FINAL DRIVE, DIFFERENTIAL
33 - Alignment bushing
34 - Drive pinion
- For front final drive
- Removing and installing → Shaft seal in drive pinion, replacing
35 - Intermediate pinion
- For front final drive
- Installation position: gear identification faces toward differential
36 - Pinion gear
- For front final drive
- Installation position: gear identification faces toward differential
37 - Shaft seal
- Replace → Shaft seal in drive pinion, replacing
