Needle bearing for spur gear 2, replacing
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Work procedure
- Remove transfer case → 39 - FINAL DRIVE, DIFFERENTIAL .
NOTE:

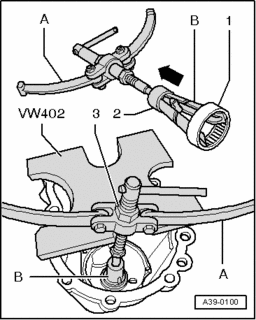

- The upper part of the illustration illustrates how the pulling hooks of the extractor - B - must be installed in the needle bearing - 1 -.
A - Counter support Kukko 22/1
B - Internal puller Kukko 21/4
- Slide centering sleeve - 2 - on Internal Puller Kukko 21/4 - B - approx. 4 mm in direction of - arrow - in order to be able to open the pulling hooks far enough.
- Spread extractor - B - into upper lip of needle bearing - 1 - and secure extractor at nut.
- Install Counter-support Kukko 22/1 - A - on internal puller - B - as show in the illustration.
- Support counter-support with Thrust Plate VW 402 and tension at counter-support nut - 3 -.
CAUTION:
Wear protective gloves!
- Quickly warm outside of transfer case housing with a hot air gun in area around needle bearing seat to approx. 100° C.
- Quickly remove needle bearing.
- Check needle bearing seating in transfer case housing for damage, rework if necessary.
CAUTION:
Wear protective gloves!
- Evenly warm outside of transfer case housing with a hot air gun in area around needle bearing seat to approx. 100° C.

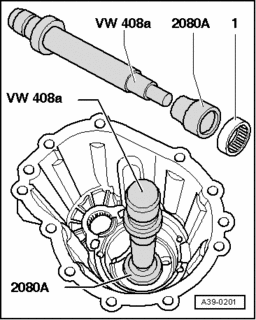

- Position Sleeve 2080 A on new needle bearing - 1 -.
- Drive needle bearing into transfer case housing as far as stop using Punch VW 408 A.
- Install transfer case → 39 - FINAL DRIVE, DIFFERENTIAL .
