Ring gear, adjusting: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
(Adjusting differential)
Special tools, testers and auxiliary items required
- Drift VW 295
- Dial gauge extension VW 382/10
- Magnetic plate VW 385/17
- Dial gauge holder VW 387
- Measuring lever, adjustable VW 388
- Pressure plate VW 402

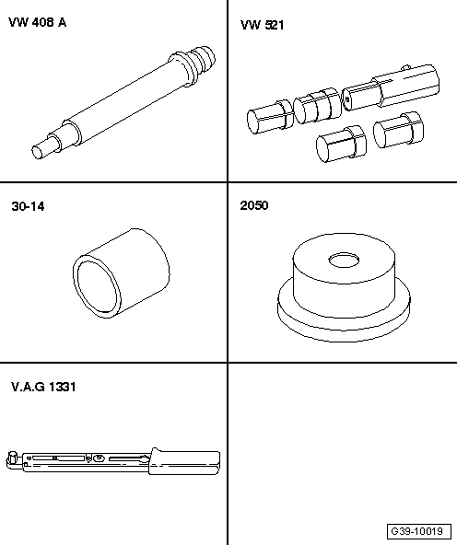

Special tools, testers and auxiliary items required
- Punch VW 408 A
- Ring gear adjustment device VW 521
- Sleeve 30 - 14
- Thrust piece 2050
- Torque wrench V.A.G 1331
- Dial gauge
- Dial gauge extension 30 mm
A new ring gear adjustment is required when the following components have been replaced:
Transmission housing, final drive cover, differential tapered roller bearings, differential housing or the gear set
Adjustment overview → Adjustment overview
Determine total shim thickness " S total " for adjustment shims " S 1 " + " S 2 "
(Setting preload of taper roller bearing for differential)
- Drive pinion removed.
- If only the tapered roller bearing for differential has been replaced, ring gear can be removed from differential housing. Drive pinion then does not need to be removed.
- Remove flange shaft sealing rings.
- Remove outer races/tapered roller bearings for differential and remove adjustment shims → Differential, disassembling and assembling .
Fig 3: Driving Outer Race For Right Tapered Roller Bearing Together With Shim Into Differential Housing
- Drive outer race for right tapered roller bearing together with shim " S 2 " into differential housing. Use a shim " S 2 * " with a 1.30 mm thickness for measurement purposes (2 shims with 0.65 mm).
NOTE:
- For the initial measurement, an adjustment shim " S 2 " with a thickness of 1.30 mm is inserted. It is designated as " S 2 * " in the following. After determining backlash, " S 2 * " is replaced by final " S 2 ".
- Pressing outer race for tapered roller bearing without shim " S 1 " into final drive cover.
- Insert differential into transmission housing. Ring gear is located on left side in front of final drive cover.
- O-ring is inserted in final drive cover.
- Install final drive cover with 4 screws (24 Nm).
- Turn transmission so that final drive cover faces upward.
- Turn differential 5 turns in both directions so that the taper roller bearings settle.

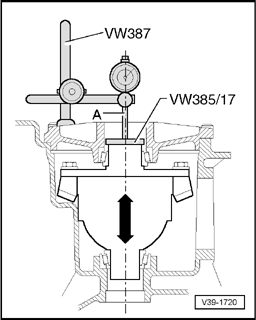

- Place magnetic plate VW 385/17 on differential.
- Assemble measuring tool, use 30 mm dial gauge extension.
- Set gauge (3 mm measuring range) - A - to "0" with 2 mm pre-load.
NOTE:
- Tip of dial indicator must be positioned on the center of the differential.
- Lift differential without turning it, read backlash on dial indicator and note.
- Measured value in following example: 0.62 mm
NOTE:
- To raise differential, secure special tools VW 521/4 and VW 521/8 at right on differential (housing side).
- If measurement is repeated, differential must first be rotated 5 complete revolutions in both directions again to seat tapered roller bearing.
Formula: " S total " = " S 2 * " + measured value + bearing preload
| Example: | ||
|---|---|---|
| Inserted shim(s) " S 2 * " | 1.30 mm | |
| + | Measured value | 0.62 mm |
| + | Bearing preload (constant) | 0.30 mm |
| = | Total shim thickness " S total " for " S 1 " + " S 2 " | 2.22 mm |
Determining thickness of adjustment shim " S 1 * "
NOTE:
- Initial shim " S 1 * " is replaced with final shim " S 1 " after backlash has been determined.
- The total shim thickness " S total " remains unchanged.
Formula: " S 1 * " = " S total " - " S 2 * "
| Example: | ||
|---|---|---|
| Total shim thickness " S total " for " S 1 " + " S 2 " | 2.22 mm | |
| - | Inserted shim(s) " S 2 * " | 1.30 mm |
| = | Thickness of adjustment shim " S 1 * " | 0.92 mm |
