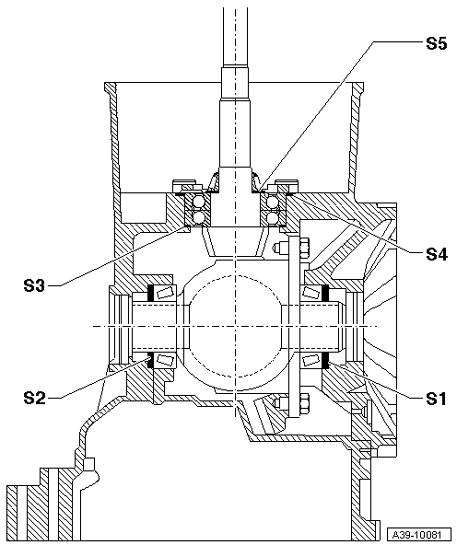

Location of shims
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Adjustment overview when replacing individual components of differential → Adjustment overview .
S1 - Ring gear adjustment shim in final drive cover
S2 - Shim for ring gear in transmission housing
S3 - Shim for positioning drive pinion in transmission housing
S4 - Shim for pre-load of double angular contact ball bearing on drive pinion
S5 - Shim for positioning inner race/tapered roller bearing on drive pinion
- Shim, determining → Shim " S 5 " for positioning inner race/tapered ball bearing, redetermining .
