Transmission cover and selector shaft, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- First, second and reverse gears, removing and installing → First, second and reverse gears, removing and installing - assembly overview .
- Input shaft, drive pinion, hollow shaft and selector rods, removing and installing → Input shaft, hollow shaft, drive pinion and selector rods, removing and installing - assembly overview .
- Do not interchange securing bushings for selector shaft and selector rods. Identify before removing.

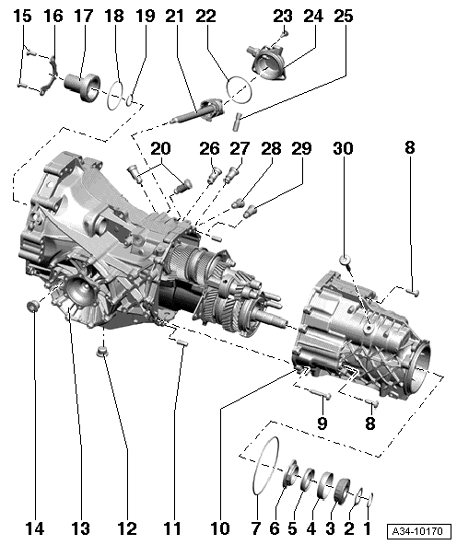

1 - Circlip
- Note thickness
- Determine thickness Determine thickness of circlip and shim(s) as follows:
2 - Washer
- Note thickness
- Determine thickness Determine thickness of circlip and shim(s) as follows:
3 - Tapered roller bearing inner race
- Can be installed and removed by hand
4 - Tapered roller bearing outer race
- Can be installed and removed by hand
5 - Spacer ring
6 - Twelve-point nut, 75 Nm
7 - O-ring
- Always replace
- Coat with transmission fluid
- Insert in surrounding groove in transmission cover
8 - Bolt, 27 Nm
- Qty. 2
- Self-locking
- Replace
9 - Bolt, 24 Nm
- Qty. 13
10 - Transmission cover
- Servicing → Transmission cover, servicing
11 - Alignment pin
- Qty. 2
- Place in transmission cover
12 - Oil drain bore screw, 40 Nm
13 - Transmission housing
- Differential, removing and installing → Differential, removing and installing
- Transmission housing, servicing → Transmission housing, servicing
14 - Oil filler hole screw, 40 Nm
15 - Bolt, 24 Nm
- Qty. 2
- Insert with locking fluid AMV 185 101 A1
16 - Securing plate
- For guide sleeve
17 - Guide sleeve
- With seal
18 - O-ring
- Always replace
- Coat with transmission fluid
- Insert in transmission housing surrounding groove
19 - Circlip
- Insert in input shaft surrounding groove
20 - Securing bushing
- For selector shaft
- Qty. 2
- Do not interchange securing bushings for selector shaft and selector rods
- Change: with edged collar for ball sleeve Selector shaft securing bushings changed
21 - Selector shaft with selector cylinder
- Removing and installing → Assembly sequence
22 - O-ring
- For selector shaft cover
- Always replace
- Coat with transmission fluid
- Insert in selector shaft cover surrounding groove
23 - Bolt -24 Nm
- Qty. 3
- Insert with locking fluid AMV 185 101 A1
24 - Selector shaft cover
- With Back-Up Light Switch F4
- Back-Up Light Switch F4 , removing and installing → 34 CONTROLS, HOUSING
- Back-Up Light Switch F4 tightening torque - 20 Nm
25 - Dowel pin
- For selector shaft retainer
- Insert in transmission housing bore
NOTE:
- There are dowel pins with and without pins, when replacing, allocate via .
- Installation location of dowel pin with pins: Insert pin side in transmission housing.
26 - Securing bushing
- For 5th/6th gear selector rod
27 - Securing bushing
- For 3rd/4th gear selector rod
28 - Securing bushing
- For 1st/2nd gear selector rod
29 - Securing bushing
- For reverse gear selector rod
30 - Screw, 24 Nm
