Torsen housing and torsen differential, removing and installing - assembly overview: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal can also be carried out with transmission installed → 34 CONTROLS, HOUSING .

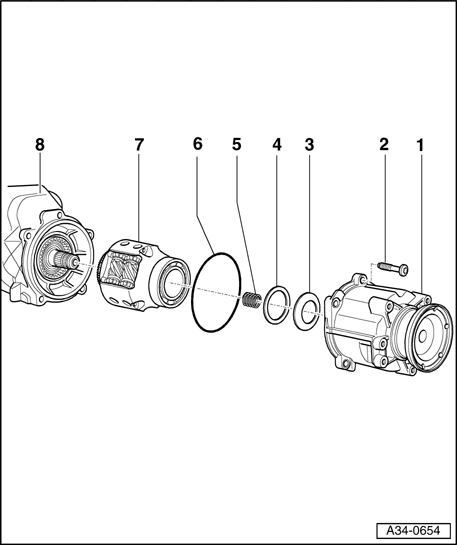

Fig 1: Transmission Cover And Torsen Differential, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Torsen housing

With or without vibration dampener, depending on version
Removing Torsen housing, removing
Installing Torsen housing, installing
Disassembling and assembling → Torsen housing, disassembling and assembling

2 - Bolt -24 Nm

Qty. 6

3 - Plate spring

Installation position: The inner diameter camber faces toward flange shaft in torsen housing Plate spring and shim, inserting in torsen housing

4 - Adjustment shim

Determine thickness

5 - Spring

Place on flange shaft in torsen housing

6 - O-ring

Always replace
Coat with transmission fluid
Insert in surrounding groove in transmission cover

7 - Torsen differential

Service by manufacturer only
Torsen differential bearing, servicing → Torsen differential bearing, servicing

8 - Transmission

Secure at assembly bracket → Assembly sequence
