Input shaft, hollow shaft, drive pinion and selector rods, removing and installing - assembly overview: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

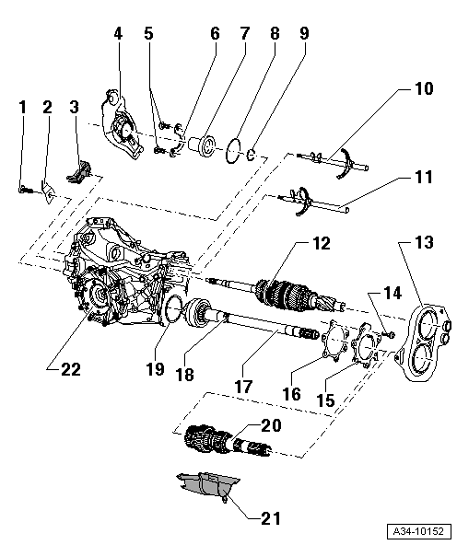

Fig 1: Input Shaft, Hollow Shaft, Drive Pinion And Selector Rods, Removing And Installing - Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bolt -24 Nm

Insert with locking fluid AMV 185 101 A1

2 - Leaf spring

3 - Intermediate piece

Insert in hole in transmission housing

4 - Clutch release lever

With release bearing

5 - Bolt, 24 Nm

Qty. 2
Insert with locking fluid AMV 185 101 A1

6 - Securing plate

For guide sleeve

7 - Guide sleeve

With seal
Input shaft seal, removing Removing seal for input shaft
Input shaft seal, installing Input shaft seal, installing

8 - O-ring

Always replace
Coat with transmission fluid
Insert in transmission housing surrounding groove

9 - Circlip

Insert in input shaft surrounding groove

10 - Selector rod for 5th/6th gear

Installed location Installation location of selector rods in transmission
Replace only complete with selector fork for 5th/6th gear with pins

11 - Selector rod for 3rd/4th gear

Installed location Installation location of selector rods in transmission
Replace only complete with selector fork for 3rd/4th gear with pins
Change: with spring-loaded shift fork → 3rd/4th gear selector rod with spring-loaded shift fork

12 - Input shaft

Disassembling and assembling → Input shaft, assembly overview

13 - Bearing bracket

Clean threaded holes of locking compound, e.g. with a thread cutter
Selector rod ball sleeves, pressing off and on Selector rod ball sleeves, pressing off and on

NOTE:

Outer roller bearing races on input shaft and hollow shaft cannot be replaced individually.
Roller bearing outer races must not have any radial clearance in bearing bracket.

14 - Bolt, 30 Nm

Qty. 6
Clean threads and insert with locking compound AMV 185 101 A1

15 - Plate

Installation position: sanded side faces toward transmission housing, fits only in one position

16 - Adjustment shim " S ₄ "

Adjustment overview → Adjustment overview

17 - Pinion

With double angular contact ball bearing and inner race/tapered roller bearing
Disassembling and assembling → Drive pinion and hollow shaft, assembly overview

18 - Needle bearing

For pinion/hollow shaft

19 - Adjustment shim " S ₃ "

Adjustment overview → Adjustment overview

20 - Hollow shaft

With gears for 5th and 6th gear pressed off
Disassembling and assembling → Drive pinion and hollow shaft, assembly overview

21 - Oil pan

22 - Transmission housing

With differential and flange shafts
