Pinion shaft, disassembling and assembling: Notes

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removing and installing gear wheels for 3rd to 6th gear and reverse selector gear is described in chapter on disassembling and assembling transmission → Disassembling and assembling sequence .

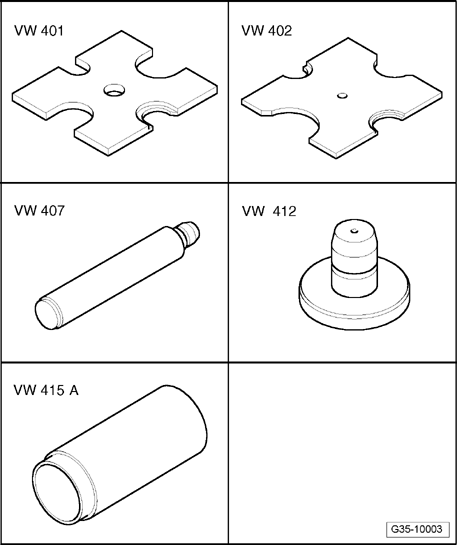

Fig 1: Identifying Special Tools - Pinion Shaft, Disassembling And Assembling (1 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Thrust plate VW 401
Thrust plate VW 402
Press tool VW 407
Thrust disc VW 412

Tube VW 415 A

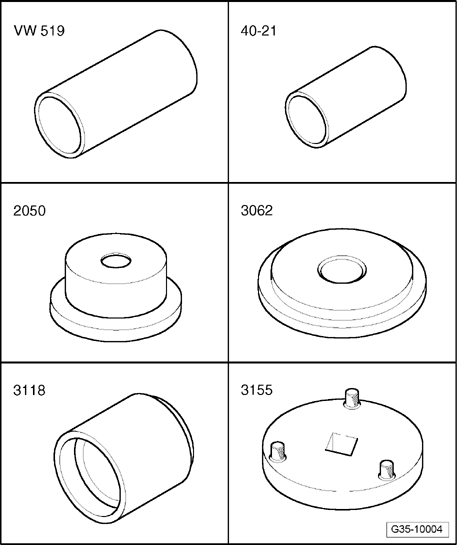

Fig 2: Identifying Special Tools - Pinion Shaft, Disassembling And Assembling (2 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Tube VW 519
Press tool 40 - 21
Thrust piece 2050
Thrust pad 3062

Press tool 3118
Slotted nut wrench 3155

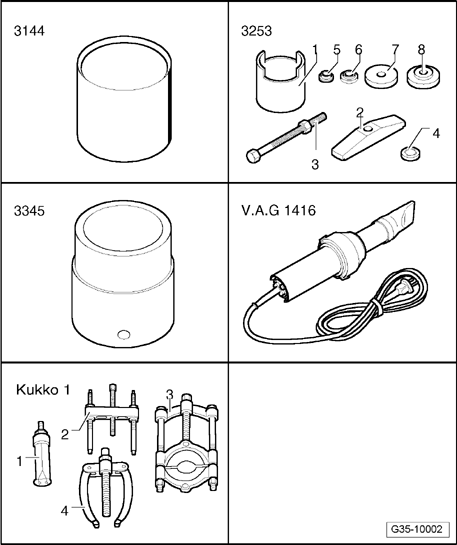

Fig 3: Identifying Special Tools - Pinion Shaft, Disassembling And Assembling (3 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Press support-RI wheel brgs. 3144
Assembly tool 3253
Tube for wheel bearing 3345
Hot air blower V.A.G 1416

- 1 - Internal puller Kukko 21/8
- 3 - Splitter Kukko 17/2
- 4 - Counter-support Kukko 22/2
Feeler gauge
