Transmission, overview

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

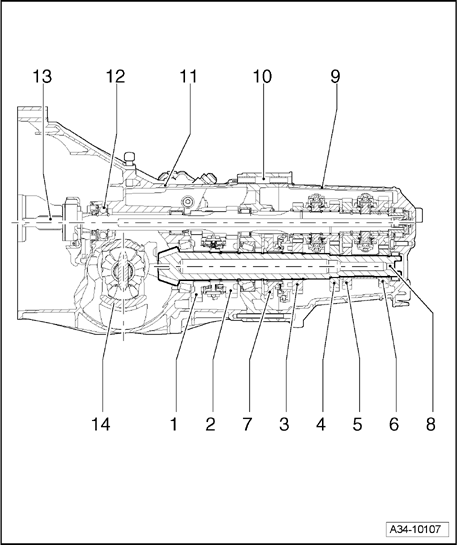

Fig 1: Transmission, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - 1st gear

2 - 2nd gear

3 - 3rd gear

4 - 4th gear

5 - 5th gear

6 - 6th gear

7 - Reverse gear

8 - Pinion shaft (output shaft)

9 - Transmission cover

10 - Bearing housing

11 - Transmission housing

12 - Ball bearing

For input shaft

13 - Input shaft (main shaft)

14 - Differential
