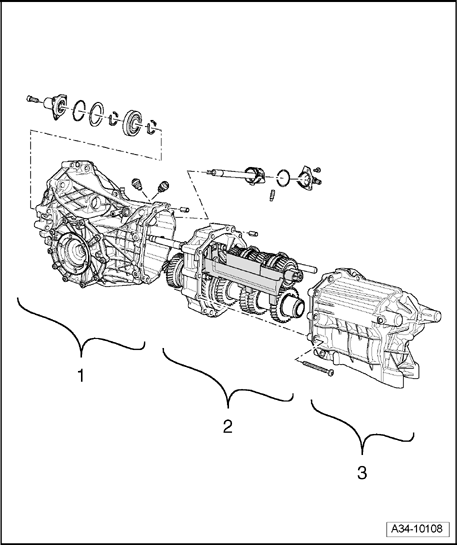

Assembly overview
WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Sequence for disassembling and assembling → Disassembling and assembling sequence
1 - Transmission housing with differential, ball bearing for input shaft and selector shaft
- Removing and installing ball bearing for input shaft, transmission cover, bearing housing and selector shaft → Ball bearing for input shaft, transmission cover, bearing housing and selector shaft, removing and installing, assembly overview
- Removing and installing differential → Differential, removing and installing
- Servicing transmission housing → Transmission housing, servicing
2 - Bearing housing with gear assembly
- Removing and installing 3rd to 6th gear → 3rd to 6th gear assembly overview, removing and installing
- Removing and installing input shaft, output shaft with selector gear for 1st and 2nd gear, reverse gear wheel and reverse selector gear → Input shaft, output shaft, reverse gear wheel and reverse selector gear, assembly overview, removing and installing
3 - Transmission cover
- Servicing → Transmission cover, servicing
