Self-adjusting clutch (Sachs version), servicing: Identification

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

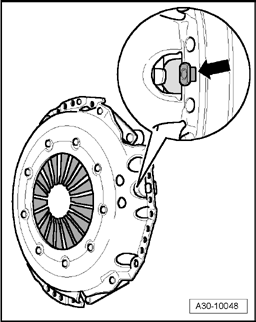

Fig 1: Pressure Plate With Impact (Position Sensor)
GW00015900Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pressure plate with stop mechanism (position sensor) - arrow  -.
