Ring gear, adjusting: Notes

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

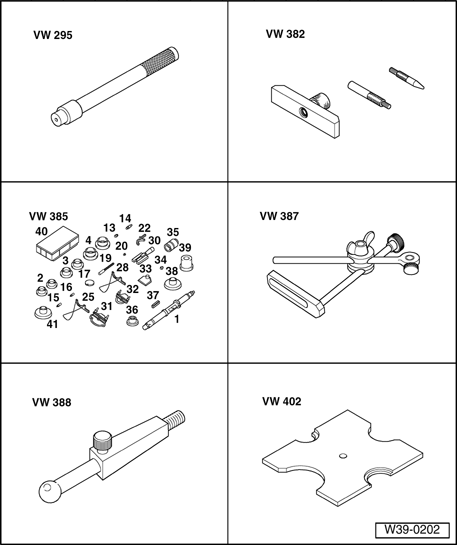

Fig 1: Identifying Special Tools - Ring Gear, Adjusting

Courtesy of VOLKSWAGEN UNITED STATES, INC.

(Adjusting differential)

Special tools and equipment

VW 295 Drift
VW 382 Special socket and measuring tools
VW 385 Universal measuring tool
VW 387 Universal dial gauge holder

VW 388 Test lever
VW 402 Thrust plate

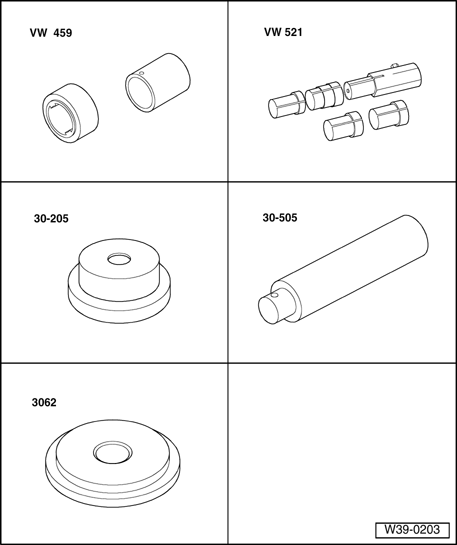

Fig 2: Identifying Special Tools - Ring Gear, Adjusting

Courtesy of VOLKSWAGEN UNITED STATES, INC.

VW 459 Installation and removal tool
VW 521 Adjustment tool for ring gear
30-205 Thrust plate
30-505 Fitting mandrel

3062 Thrust disc
Torque gauge 0 to 600 Ncm
Dial gauge
Dial gauge extension

It is necessary to readjust the ring gear when:

Transmission housing, cover for final drive, taper roller bearing outer race for differential, final drive housing or final drive set are replaced.

Adjustment overview. Refer to Adjustment overview
