Gear sets, adjusting and marking

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

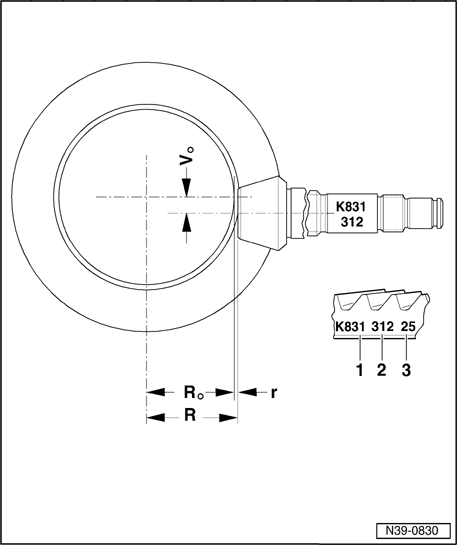

Fig 1: Gear Sets, Adjustments And Markings

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Marking "K831" indicates Klingelnberg final drive set with transmission ratio 31 : 8.

2 - Gear set pairing number (312).

3 - Deviation (tolerance) "r" is based on the test machine master gauge used in production. The deviation "r" is always given in 1/100 mm. Example: "25" means r = 0.25 mm

Ro - Length of test machine master gauge used. "Ro" = 59.65 mm

Fig 2: Gear Sets, Adjustments And Markings

Courtesy of VOLKSWAGEN UNITED STATES, INC.

R - Actual dimension between ring gear and face of pinion shaft at point with quietest running for this pinion set.

Vo - Hypoid offset
