Component overview

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Shift Mechanism Remove/Install Components - Part 1

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Part 1

NOTE: Lubricate bearing areas and slide surfaces with polycarbamide grease, Part No. G 052 142 A2.

1 - Ball

2 - Rubber ring

3 - Ball guide

4 - Rubber ring

5 - Washer

Shoulder faces ball guide (Item 3 Component overview )

6 - Snap ring

Remove to remove the ball

Fig 2: Shift Mechanism Remove/Install Components - Part 1

Courtesy of VOLKSWAGEN UNITED STATES, INC.

7 - Compression spring

8 - Spacer bushing

9 - Washer

10 - Snap ring

11 - Noise insulation cover

12 - Shift knob

with cover
Removing and installing. Refer to Shift knob and cover, removing and installing

13 - Nut - 10 Nm

14 - Ball housing

15 - Inner Torx bolt

Fig 3: Shift Mechanism Remove/Install Components - Part 1

Courtesy of VOLKSWAGEN UNITED STATES, INC.

16 - Shift lever

Angled area faces rear

17 - Bolt

18 - Nut - 10 Nm

19 - Shift mechanism housing

20 - Shift fork

21 - Nut - 10 Nm

Self-locking
Always replace

22 - Bushing

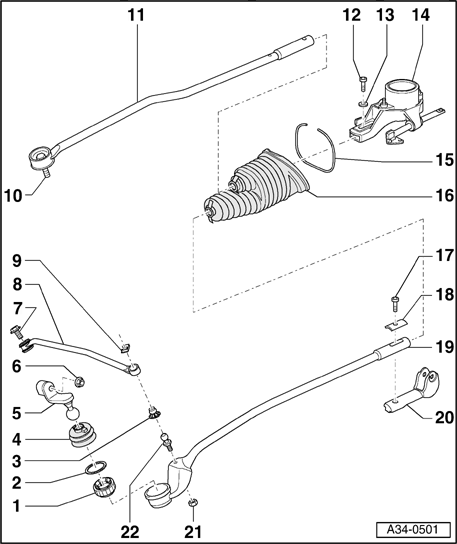

Fig 4: Shift Mechanism Remove/Install Components - Part 2

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Part 2

1 - Ball socket

To remove, bend back peenings on shift rod -Item 19 Component overview

2 - Washer

3 - Ball socket

To remove, remove locking clips -Item 9- Component overview

4 - Boot

5 - Transmission shift lever

6 - Nut - 23 Nm

7 - Bolt - 23 Nm

8 - Operating rod

To remove, remove locking clips -Item 9- Component overview

Fig 5: Shift Mechanism Remove/Install Components - Part 2

Courtesy of VOLKSWAGEN UNITED STATES, INC.

9 - Locking clamp

10 - Bolt - 40 Nm

11 - Pivot rod

with bushing, bolt and washers

12 - Socket head bolt- 23 Nm

13 - Washer

14 - Ball housing

15 - Tensioning ring

16 - Boot

Carefully pull over shift rods when removing
When installing, place on markings of shift rod and pivot rod

Fig 6: Shift Mechanism Remove/Install Components - Part 2

Courtesy of VOLKSWAGEN UNITED STATES, INC.

17 - Socket head bolt- 23 Nm

18 - Clamping piece

19 - Shift rod

20 - Shift fork

21 - Nut - 10 Nm

22 - Nipple
