Peening baffle plate in position when replacing ball bearing for input shaft

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

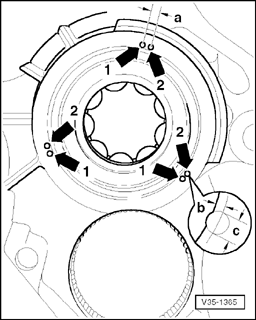

Fig 1: Peening Baffle Ring When Replacing 4-Point Bearing For Input Shaft

GW00005940

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Use a blunt punch with a ball-shaped end (ball-diameter 5 mm) to peen in position.
Insert baffle plate.
First peen at points marked with -arrows 1-.
Then peen at points marked with -arrows 2- at distance -a- from first position.

Distance a = 5 mm

Observe position and diameter of peening positions:

Distance b = 2 mm
Dimension c = 3 mm
