Special tools and workshop equipment required

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

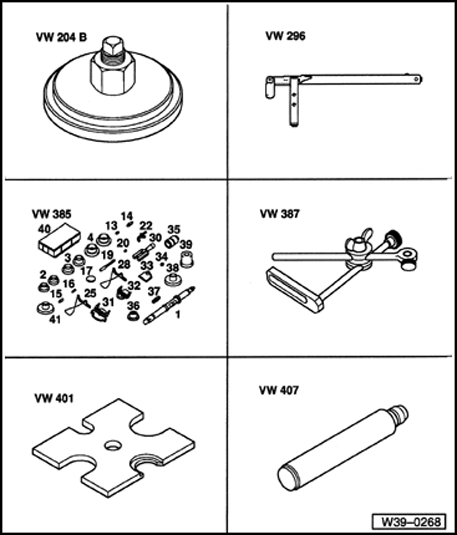

Fig 1: Identifying Special Tools - Drive Pinion, Adjusting

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Crankshaft seal installing tool VW 204 B Crankshaft seal installing tool
VW 296 Oil seal extractor
VW 385 Universal measuring tool
VW 387 Universal dial gauge holder

VW 401 Thrust plate
VW 407 Thrust tool

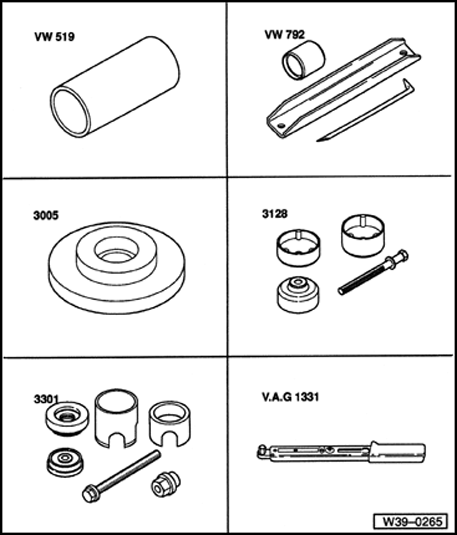

Fig 2: Identifying Special Tools - Drive Pinion, Adjusting

Courtesy of VOLKSWAGEN UNITED STATES, INC.

VW 519 Tube
VW 792 Assembly device
3005 Thrust plate
3128 Puller

3301 Assembly equipment
V.A.G 1331 Torque wrench

Re-adjustment of the drive pinion is only necessary if the final drive set, tapered roller bearing for drive pinion or transmission housing is replaced. .

The object of the adjustment is to reproduce the setting for quietest possible running, as obtained on the test machine in production. Maximum care and cleanliness are essential when performing repairs and taking measurements for achieving good results.
