Pressing on 4th gear wheel

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

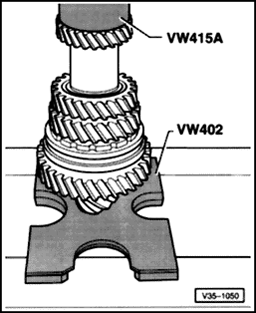

Fig 1: Pressing On 4th Gear
GW00005407Courtesy of VOLKSWAGEN UNITED STATES, INC.

High inside collar faces 3rd gear
