Shift mechanism, removing and installing

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Removing

NOTE: The shift lever knob is removed with shift lever cover and cover for center console.

Fig 1: Lifting Cover For Center Console Upward

GW00018841

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lift off cover for center console upward -arrows-.

Fig 2: Releasing Connector Piece

GW00018842

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Release connector piece -1- in direction of arrow and pull off shift lever knob together with shift lever cover upward.

Fig 3: Lifting Cover And Pulling Out And Removing Bolts And Pulling Ashtray From Center Console

GW00018843

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lift cover off -1- first in direction of arrow -A- and then pull out in direction of arrow -B-.
Remove bolts -arrows C- and then pull ashtray -2- from center console

Fig 4: Lifting Out Damping Washer And Noise Insulation

GW00018844

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lift out damping washer -1- and noise insulation -2-.

Fig 5: Locating Noise Insulation For Shift Lever Housing Bolts

GW00018845

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove noise insulation for shift lever housing -arrows-.

Fig 6: Locating Securing Nuts For Shift Lever Housing

GW00018846

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove securing nuts for shift lever housing -arrows-.

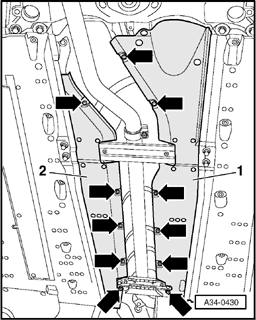

Fig 7: Locating Covers Bolts

GW00018848

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts -arrows- and detach covers -1- and -2-.

Fig 8: Cross Member Bolts

GW00018849

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove rear cross member -arrows-.

Fig 9: Rear Section Of Exhaust System And Front Cross Member

GW00018850

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove front cross member -1- -arrows-.
Remove rear section of exhaust system (rearward of exhaust pipe clamp(s) -2-:

Refer to 26 - EXHAUST SYSTEM, EMISSION CONTROLS

Remove heat shield -4- above exhaust system.

Fig 10: Identifying Transmission Shift And Pivot Rods

GW00005276

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove selector rod -arrow A-.
Remove hex socket-head bolt of push rod -arrow B-.
Swivel shift lever housing with selector rod and push rod downward and remove.

Installing

Installation is carried out in the reverse order.

Push selector rod on so the securing bolt fits in the recess of the selector shaft.

Fig 11: Identifying Transmission Shift And Pivot Rods

GW00005276

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tighten screw selector rod (arrow -A-).
Push rod must be screwed to transmission (arrow -B-).
Align exhaust system stress-free:

Refer to 26 - EXHAUST SYSTEM, EMISSION CONTROLS

Adjust gear selector mechanism. Refer to Shift mechanism, adjusting .

Fig 12: Turning Connector Piece Till It Stops

GW00018847

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place shift lever knob together with shift lever cover onto shift lever and turn connector piece -1- in direction of arrow as far as stop.

Tightening torques

Component		Nm
Shift lever housing to body		10
Selector rod to transmission		23
Push rod to transmission		40
Clamp for exhaust pipe		40
Front cross member		55
Rear cross member		55
Noise insulation for shift lever housing to rear push rod		10 Nm
