Center Differential Housing Overview, Attached Driveshaft

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Audi S5, 2014 Audi S5, 2013 Audi S5, 2012 Audi S5, and 2011 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

REPAIR INFORMATION

CLEAN WORKING CONDITIONS .

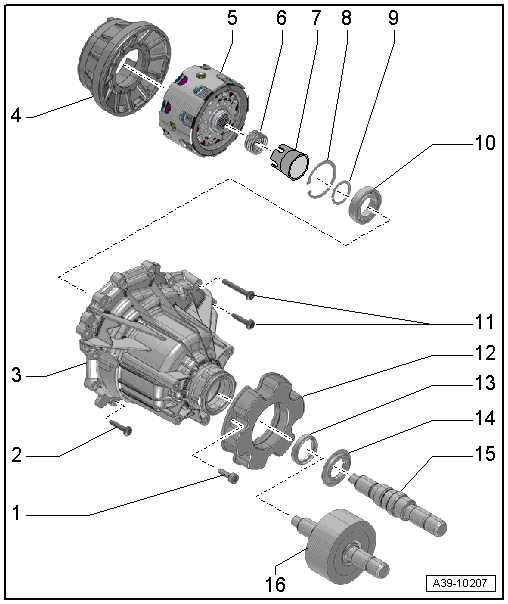

Fig 1: Center Differential Housing Overview, Attached Driveshaft

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 20 Nm + 90°
- Replace
Bolt
- Aluminum bolts
- Quantity: 11
- Replace
- Tightening specification and sequence, refer to Fig 2
Housing
- For the center differential
- Removing and installing, refer to CENTER DIFFERENTIAL HOUSING AND CENTER DIFFERENTIAL, BOLTED DRIVESHAFT or CENTER DIFFERENTIAL HOUSING AND CENTER DIFFERENTIAL, ATTACHED DRIVESHAFT
Gear Carrier
- Installed position: The tab must fit into the opening in the transmission intermediate housing
Center Differential
Pressure Spring
Guide Sleeve
- Does not have to be installed again
Locking Ring
- For the transmission output shaft ball bearing with splines
- Removing and installing, refer to TRANSMISSION OUTPUT SHAFT WITH SPLINES, TRANSMISSION OUTPUT SHAFT BALL BEARING WITH SPINES .
Locking Ring
- For the transmission output shaft with splines
- Removing and installing, refer to TRANSMISSION OUTPUT SHAFT WITH SPLINES, TRANSMISSION OUTPUT SHAFT BALL BEARING WITH SPINES .
Ball Bearing
- For the transmission output shaft with splines
- Removing and installing, refer to TRANSMISSION OUTPUT SHAFT WITH SPLINES, TRANSMISSION OUTPUT SHAFT BALL BEARING WITH SPINES
Bolt
- Steel bolts
- Quantity: 2
- Replace
- Tightening specification and sequence, refer to Fig 2
Balance Weight
- Installed depending on the version
Shaft Seal
- Replace on vehicles with vibration damper, refer to TRANSMISSION OUTPUT SHAFT WITH SPLINES, TRANSMISSION OUTPUT SHAFT BALL BEARING WITH SPINES
- Replace on vehicles without vibration damper, refer to TRANSMISSION OUTPUT SHAFT WITH SPLINES, VEHICLES WITHOUT VIBRATION DAMPER
Dust Ring
- Replace after removing
Transmission Output Shaft with Splines Without Vibration Damper
- Removing and installing, refer to TRANSMISSION OUTPUT SHAFT WITH SPLINES, TRANSMISSION OUTPUT SHAFT BALL BEARING WITH SPINES
Transmission Output Shaft with Splines and Vibration Damper
- Removing and installing, refer to TRANSMISSION OUTPUT SHAFT WITH SPLINES, TRANSMISSION OUTPUT SHAFT BALL BEARING WITH SPINES
- VIBRATION DAMPER, INSTALLING ON TRANSMISSION OUTPUT SHAFT WITH SPLINES

Fig 2: Tightening Specification And Sequence, Center Differential Housing - Attached Driveshaft

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts in 8 stages as follows:

Step	Bolts	Tightening Specification/Additional Turn
1.	Aluminum bolts -1-	8 Nm
2.	Aluminum bolts -2-	Tighten the bolt hand-tight.
3.	Aluminum bolts -1-	Loosen again and then install all the way hand-tight
4.	Aluminum bolts -3-	Tighten the bolt hand-tight.
5.	Steel bolts -4-	Tighten the bolt hand-tight.
6.	-1, 2, 3, 4-	10 Nm diagonally
7.	Steel bolts -4-	15 Nm
8.	-1, 2, 3, 4-	90° additional turn, diagonally
