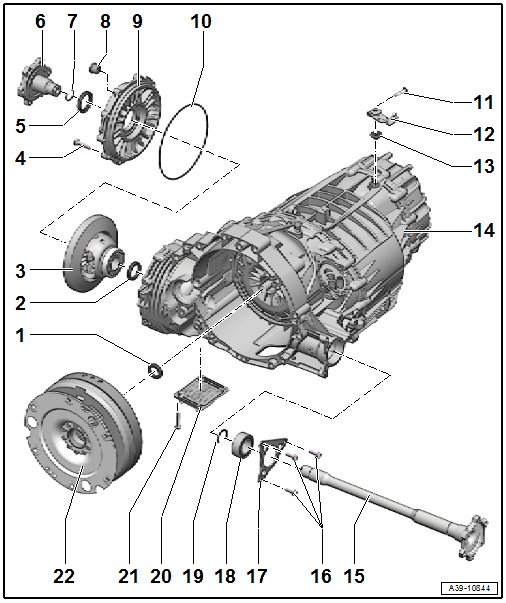

Overview - Final Drive: Notes
WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to REPAIR INFORMATION .
Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
- Shaft Seal
- For the input shaft
- Refer to INPUT SHAFT SEAL, REPLACING
- Shaft Seal
- For the left flange shaft
- Refer to LEFT SEAL, REPLACING
- Differential
- Bolt
- Tightening specification and sequence. Refer to TIGHTENING SPECIFICATIONS .
- Always replace
- Shaft Seal
- For the right flange shaft
- Refer to RIGHT SEAL, REPLACING
- Right Flange Shaft
- Removing and installing. Refer to RIGHT FLANGE SHAFT, REMOVING AND INSTALLING .
- Refer to RIGHT FLANGE SHAFT, REMOVING AND INSTALLING
- Circlip
- Always replace
- Fill and Check Plug
- 30 Nm
- Always replace
- For the gear oil inside the front final drive
- Cover
- For the front final drive
- Pay attention to the alignment sleeves
- Removing and installing. Refer to LEFT SEAL, REPLACING .
- Prefill after removing the front final drive cover. Refer to GEAR OIL, DRAINING AND FILLING .
- O-ring
- Always replace
- On the front final drive cover
- Bolt
- 10 Nm
- Selector Lever
- Shaft Seal
- For the selector shaft
- Refer to GEARSHIFT SHAFT SEAL, REPLACING
- Transmission
- Left Flange Shaft
- Bolt
- 10 Nm +90°
- Always replace
- Mounting Bracket
- For the left flange shaft
- Attached to the left flange shaft with the ball bearing -17- and the circlip -18-
- Check for traces of wear on the mounting bracket and check the pretension on the ball bearing for the left flange shaft. Refer to LEFT FLANGE SHAFT BALL BEARING PRETENSION
- Removing and installing. Refer to LEFT FLANGE SHAFT BALL BEARING MOUNTING BRACKET, REPLACING .
- Ball Bearing
- For the left flange shaft
- Left Flange Shaft Ball Bearing Pretension, Checking. Refer to LEFT FLANGE SHAFT BALL BEARING PRETENSION
- Refer to LEFT FLANGE SHAFT BALL BEARING MOUNTING BRACKET, REPLACING
- Retainer
- Always replace
- Housing Cover
- With seal
- Bolt
- 5 Nm + 90°
- Always replace
- Dual Mass Flywheel
